Foildrive Gen 2 MAX Split Bolt Wingnut Set - M7/M8 or M6 | Hydrofoil Wingscrews

Change your foil position without paddling in!

M6 internal thread studs.

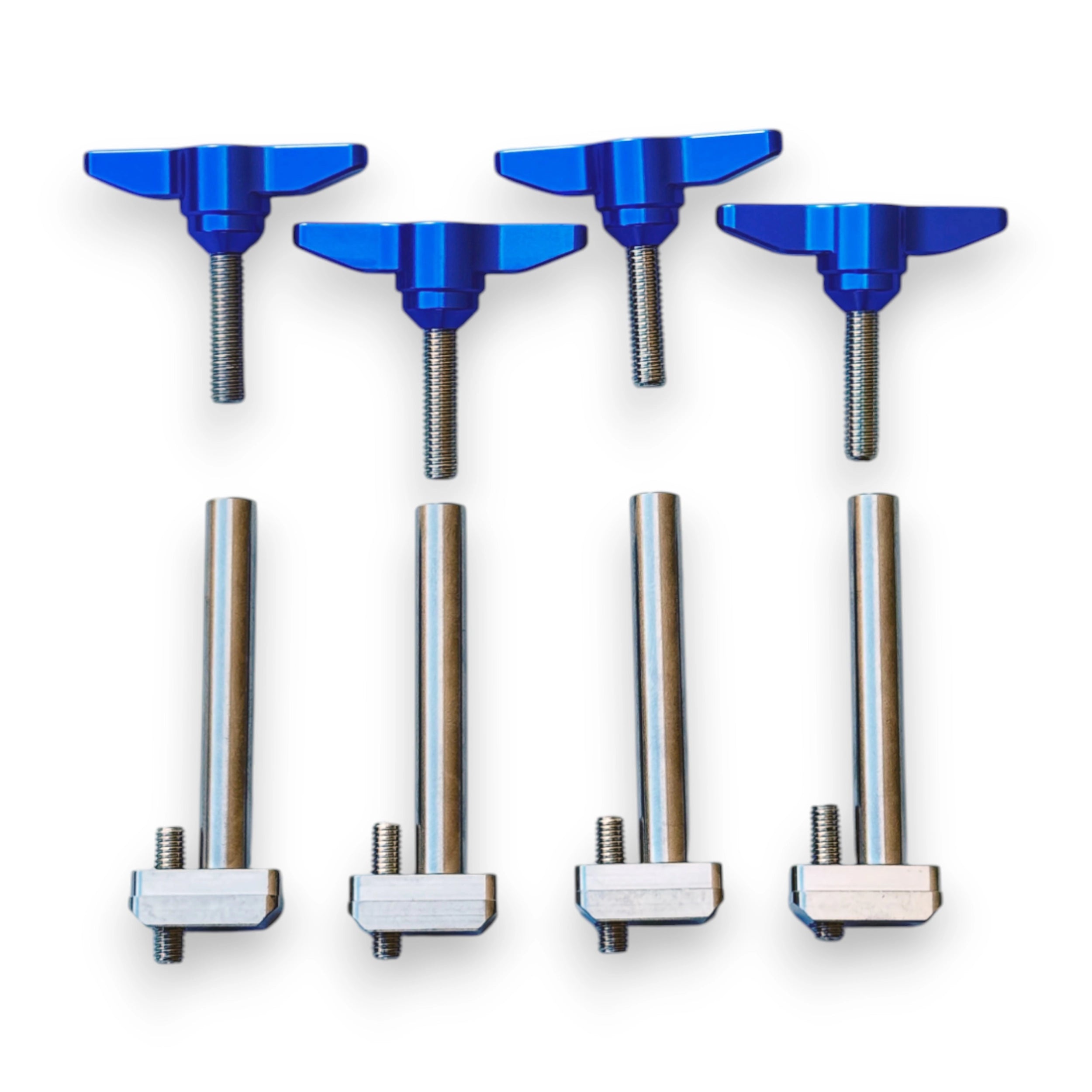

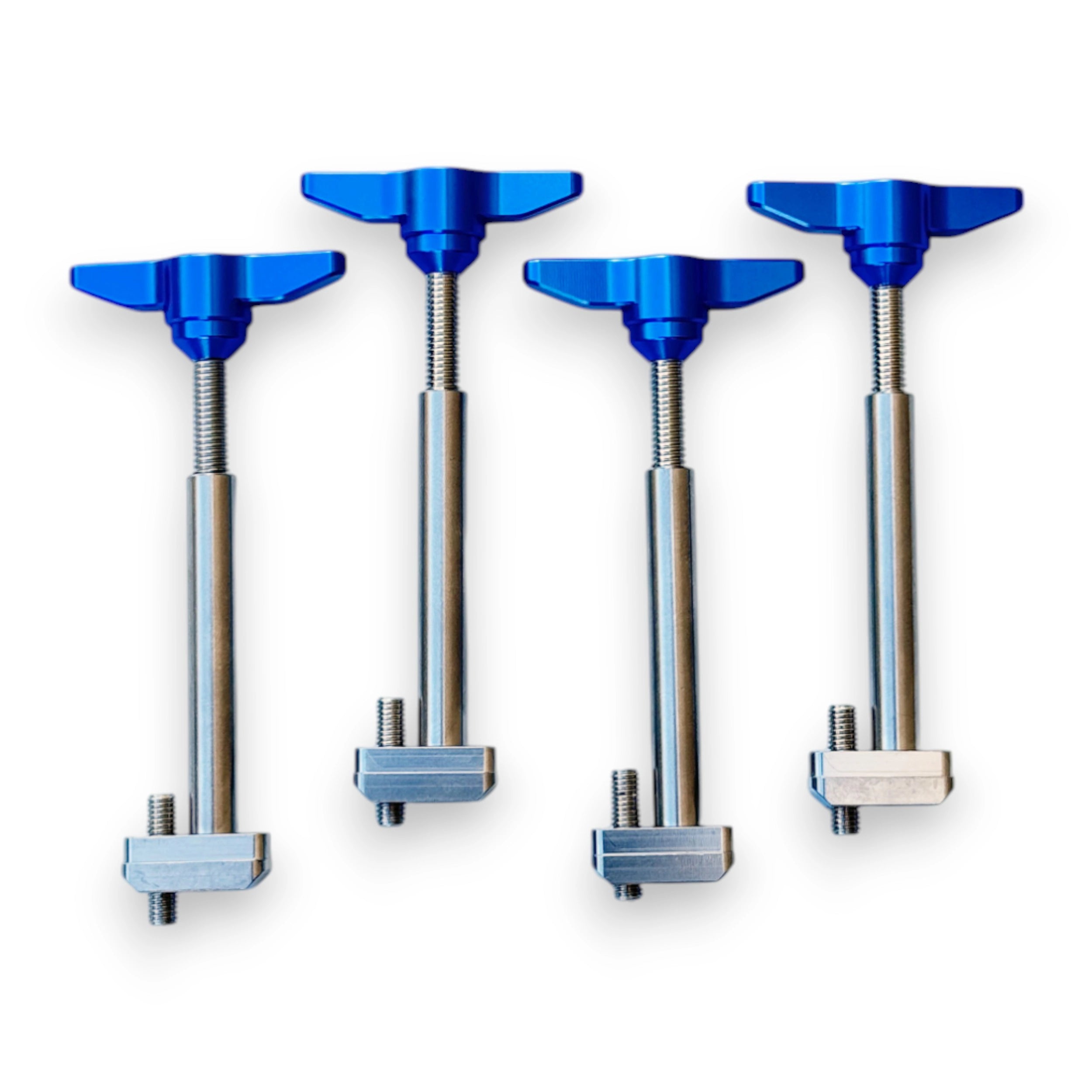

This set includes four grade 5 (6Al-4V) titanium studs with integrated track nuts.

The track nuts are threaded on and TIG welded to the studs for security. Setscrews in the t-nuts can be used to lock the studs in a fixed position in the tracks, if desired. The studs have an M6x1 internal thread and can be used with M6 wingscrews or any standard M6 screw.

These studs are designed for use with the Foil Drive MAX and allow for quick and easy battery changes.

These screws have M6x1 threads and a large diameter head which fits well in M7/M8 countersunk holes.

Wingnut colours may vary depending on availability.

**We suggest using foam in your track to keep your split bolts in place, not the pins as they create excess pressure on your tracks.
