Foil Drive Assist MAX Kit with Battery
Desctiption
To complete the purchase of the kit, choose your battery and regional power adaptor.

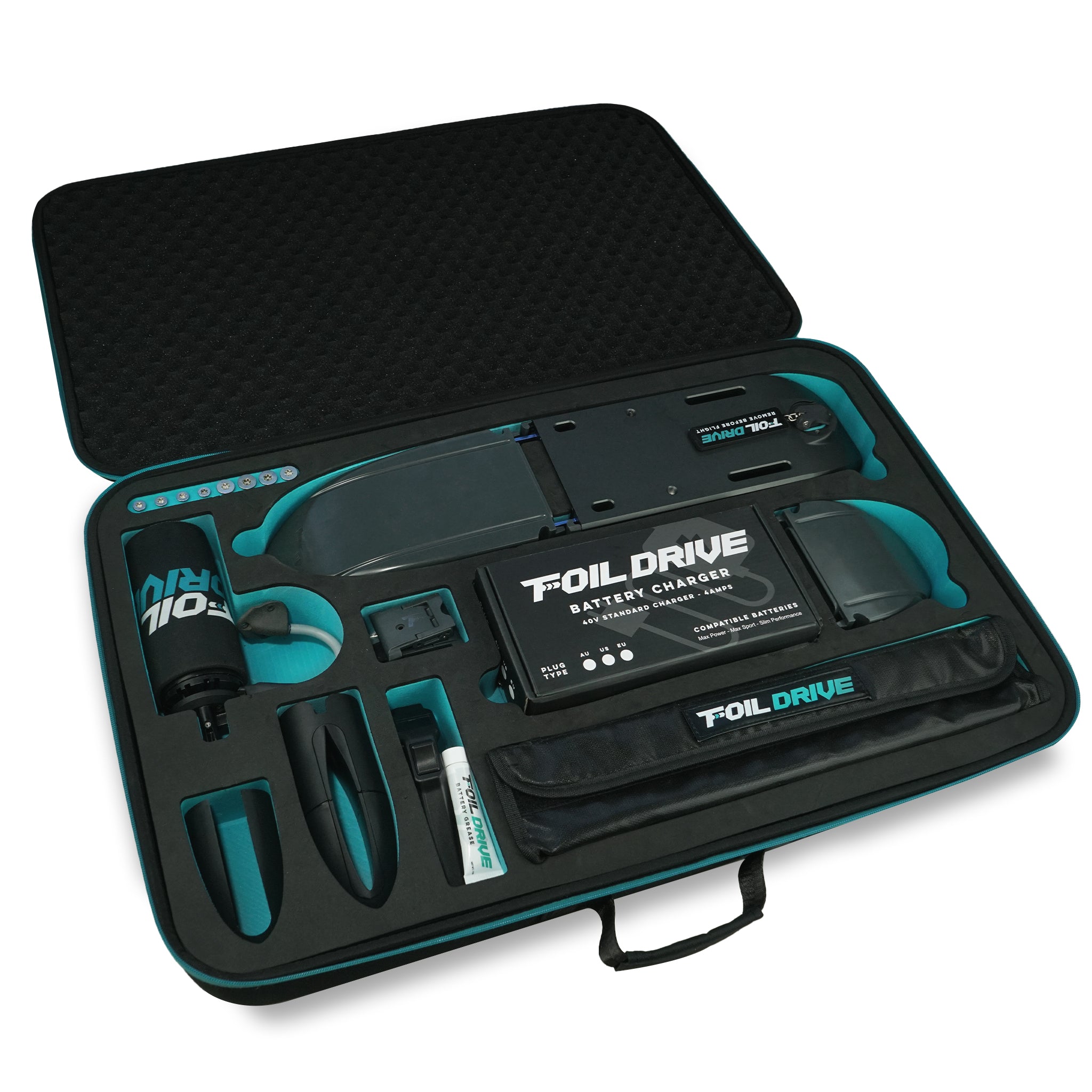

The kit includes everything you need to turn your existing hydrofoil and board into an electric assisted foiling machine. Delivering maximum power, runtime, thrust, and versatility for all foiling enthusiasts. Suitable for beginners and experienced riders, the Assist MAX enhances your adventures in all disciplines of foiling. Discover the ultimate foiling experience with the Assist MAX.

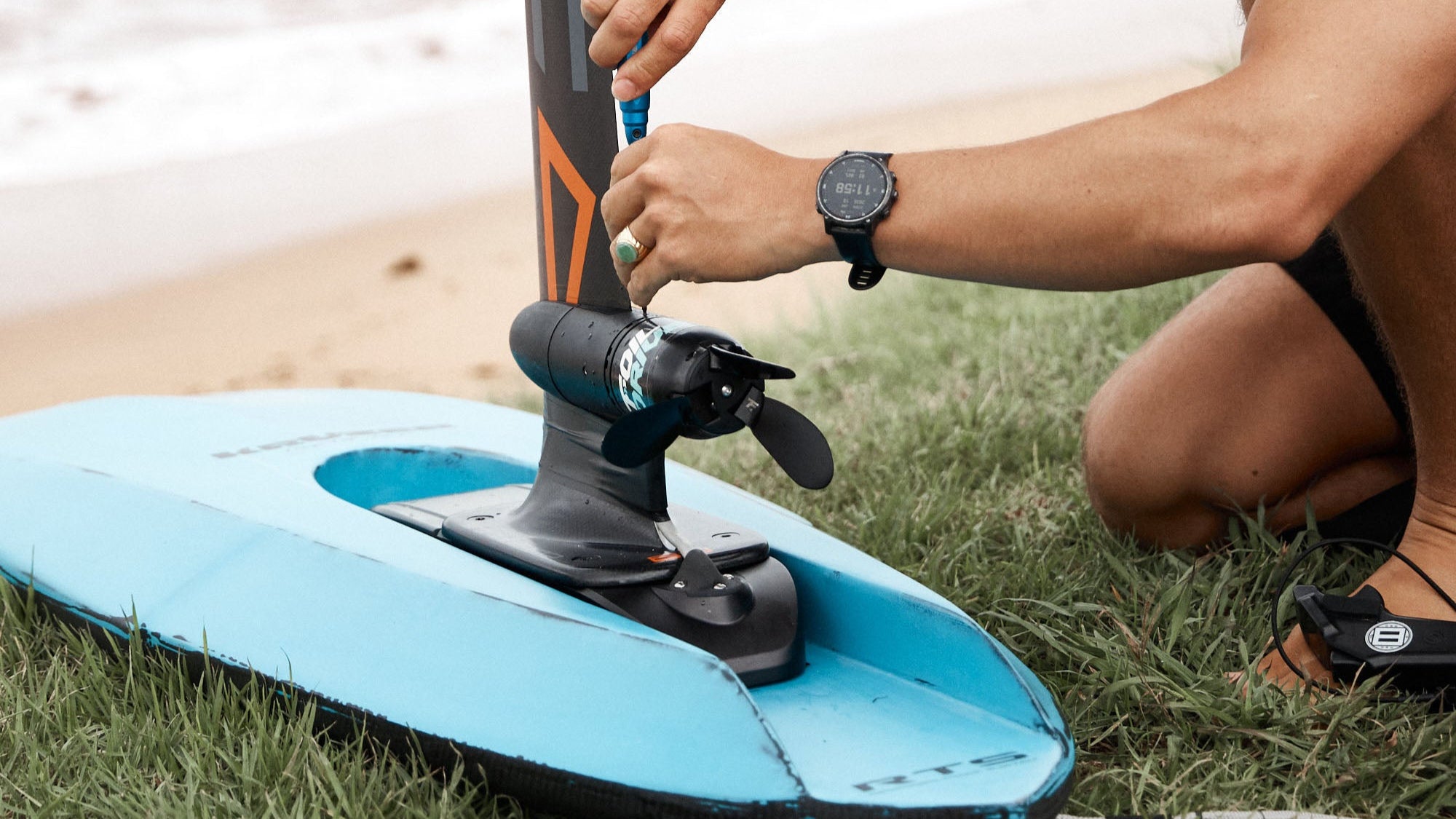

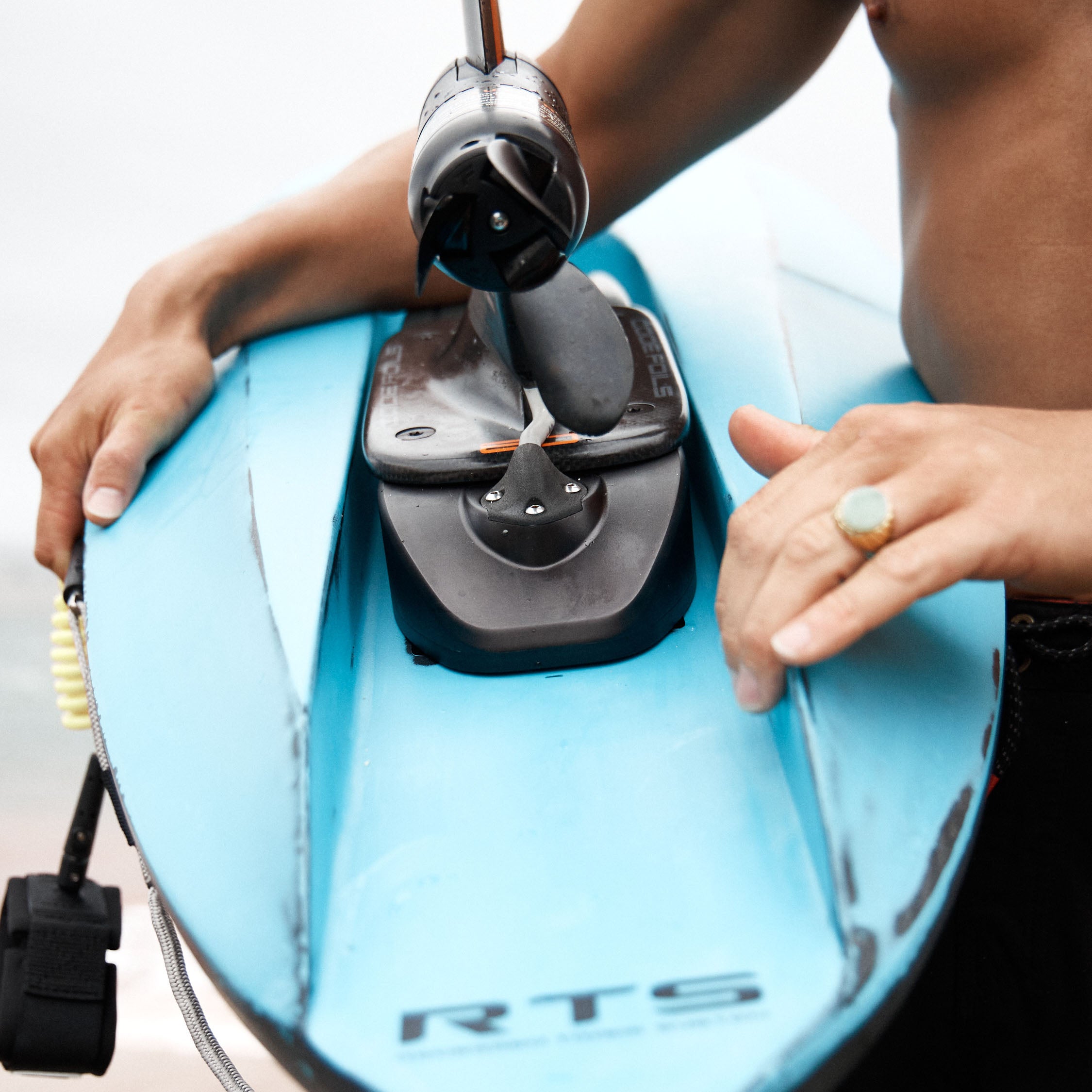

Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.
Tec Specs
Maximum Thrust: 27.5kg (60.6lbs) with Three Blade Alloy Props
Total Install Weight: 4.8-5.8kg (10.5-12.7lbs) depending on battery
Max. Dimensions: L525 x W125 x H50mm
Min. Dimensions: L415 x W125 x H50mm
Operating Voltage: 40V
Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
Recharge Time: Appx. 2-3.5hrs (Power Battery)
Batteries: IP68 rated dust and water resistant.

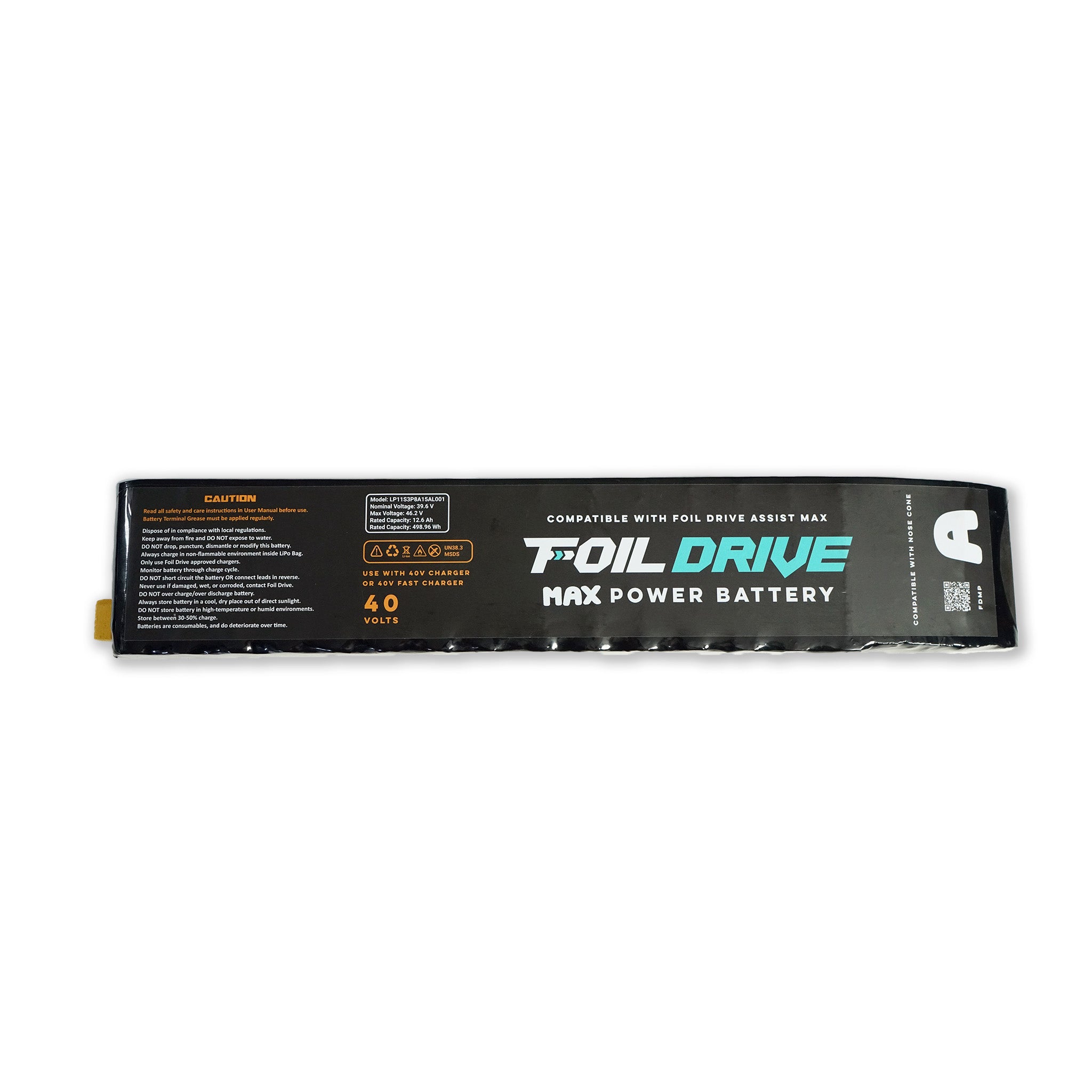

MAX Power Battery
The MAX battery offering the longest run time with high power performance.
Volts: 40V
Energy: 498.69Wh
Battery Weight: 2.6kg (5.7lbs)
Weight (Installed): 4.5kg (9.9lbs)
Dimensions (Installed):
L525 x W125 x H50mm
Dimensions (Battery Only):
L420 x W75 x H40mm
Maximum boost: 24%
Max boost time: 18 seconds

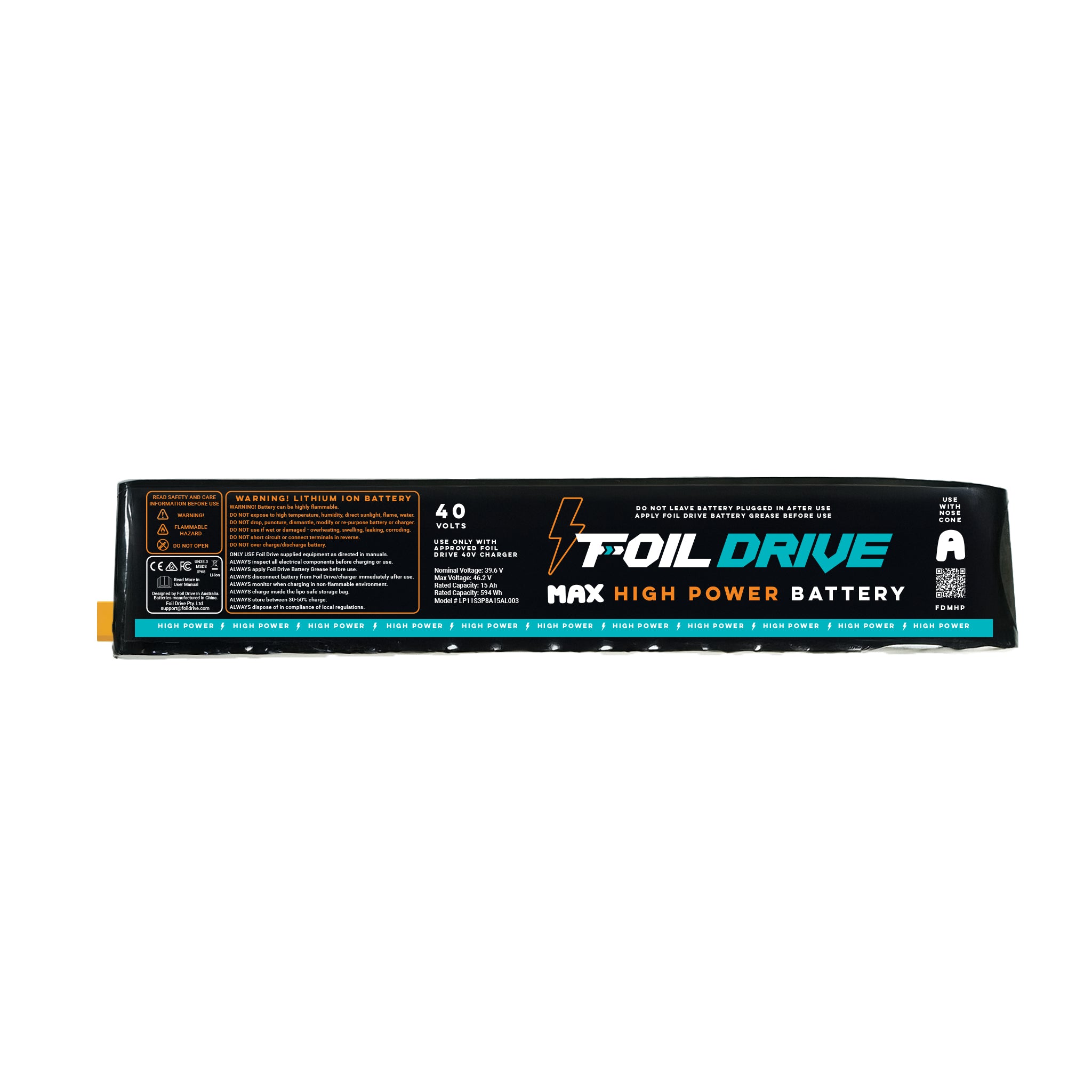

MAX High Power Battery
Designed exclusively for the Assist MAX System. Utilizing cutting-edge battery technology, this powerhouse packs significantly more capacity into the same compact size as the current MAX Power Battery, just 100g heavier.
MAX High Power: 594 Wh
MAX Sport: 332.64 Wh
MAX Power: 498.69 Wh
That’s over 19% more capacity compared to the MAX Power Battery, giving you longer ride times and more adventures without compromise.

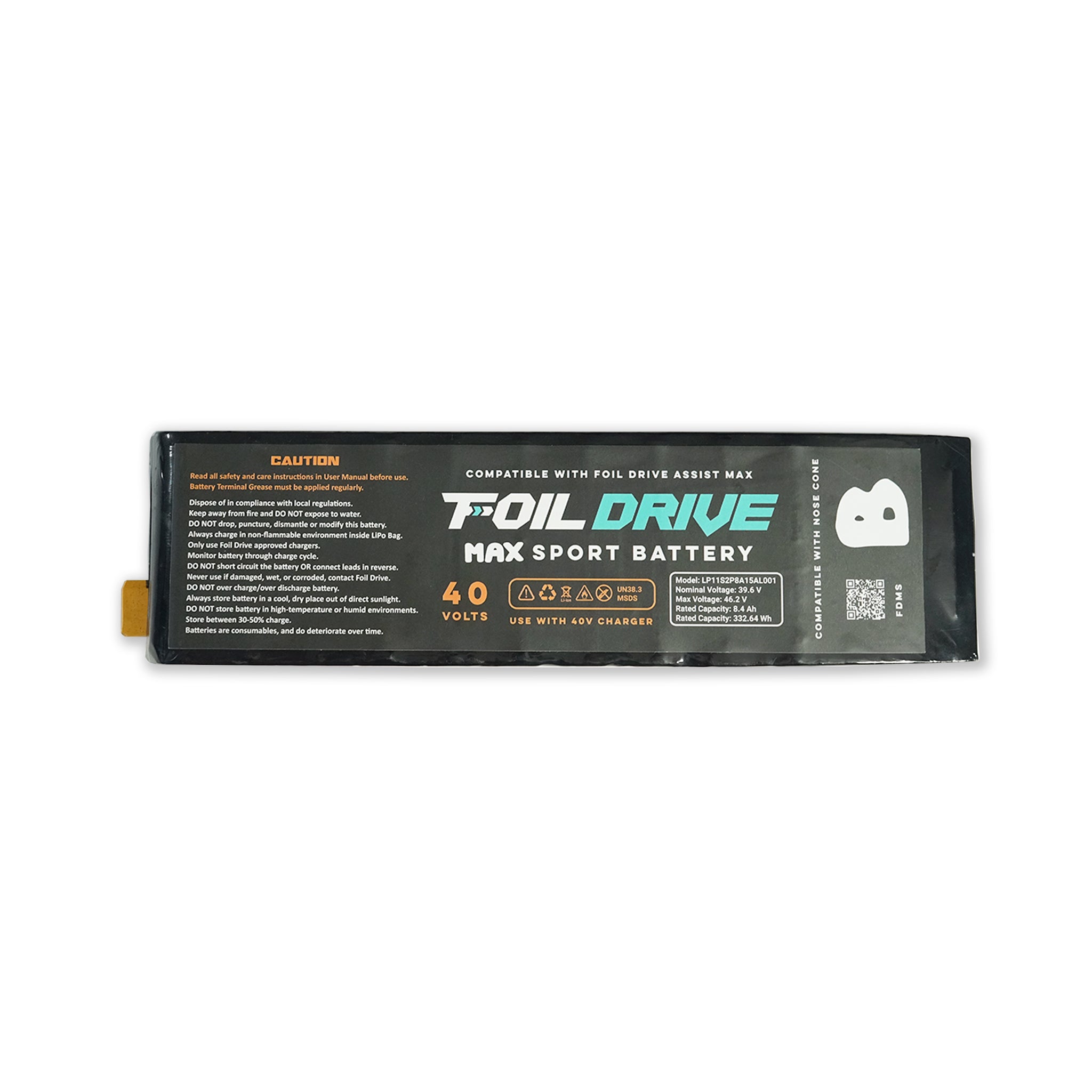

Max Sport Battery
The Foil Drive MAX Sport Battery is the smaller, lighter MAX battery with 332Wh capacity. This offers Assist MAX users the ability to reduce the weight of their install for those riders looking for ultimate performance at the cost of reduced runtime.
Maximum boost: 20%
Max boost time: 15 seconds

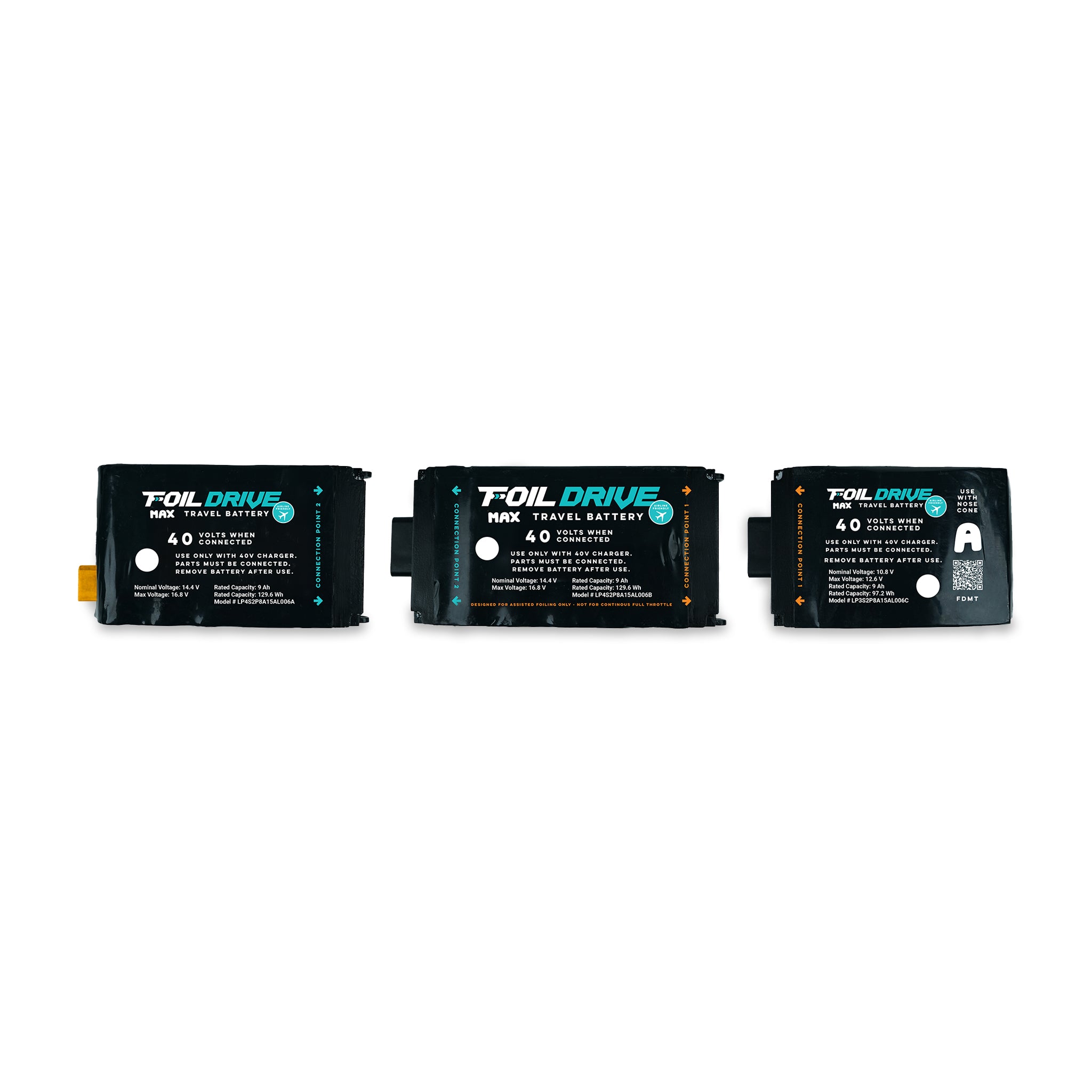

MAX Travel Battery
MAX Travel Battery allows you to travel with your gear to your favourite riding destination and take a battery with you! The MAX Travel Battery breaks down into three smaller sections for approved airline travel with 2 parts being 129.6wh and one part at 97.2wh. With just a few simple screws, the battery reassembles quickly and easily and can stay complete for storage, usage and charging.
The complete battery when joined together is rated at 9ah capacity or 350wh meaning it is slightly larger capacity or run time than the MAX Sport battery. Due to the extra length added by the extra connector parts, the Travel Battery uses the longer "A" Nose Cone for your Assist MAX.
Most airlines around the world will allow a person to carry 2x 100-160wh batteries, some do require pre-approval first though.
Can Travel batteries be used e-foiling/constant power? No. These batteries are designed to be used in Assist mode only.
All Gen2 Foil Drive batteries, the MAX Travel Battery is certified IP68 rated for increased protection and peace of mind against water and dust.
We can special order in all Foil Drive accessories. Please contact us on the chat and we can help you out.
Board and foil not included. For international orders please contact us.
